BOOTH 1435

The Newest, Most Versatile Vibrating Screen

W.S. Tyler will premiere the new TYCAN HSG T-Class Vibrating Screen at MinExpo. With this new technology in vibrating screens, screen media can be easily blended, modified, and exchanged, optimizing wear life versus open area. The stroke and amplitude can be adapted to your product quickly and easily without new parts. Its reinforced structure promotes the longevity of the machine’s components. The extreme versatility leaves this vibrating screen in a category of its own.

For more information, please contact:

Kristen Randall
Marketing Manager
W.S. TYLER
225 Ontario Street
St. Catharines, ON
L2R 7B6

Tel: (905) 688-2644
Fax: (905) 688-6940
Mobile: (905) 933-1559
E-mail: krandall@wstyler.on.ca

Web: www.wstyler.com

BOOTH 7271

Cubex Limited has been providing customers DTH mining solutions since the early seventies. Over the next 35 years the company has grown to become a world leader in providing high pressure DTH underground and surface drills engineered to provide Mining Companies and Contractors the means to achieve a lower overall cost of production.

The Cubex underground drilling equipment includes the Megamatic series - 5200 drill, 6200 drill, LH1 drill, R55 and R110 reciprocating boosters, S92, S112, S130Hand S150H screw boosters and the Constellation series, highly mobile, rubber tired, articulated drills - Aries, Aquarius, Aquila, Orion and Pegasus. Cubex customers have a complete underground product range available based on requirements for hole size, stope size, hole length, mobile rubber tire or track drive systems and application-D.T.H, Top Hammer and Wassara drilling.

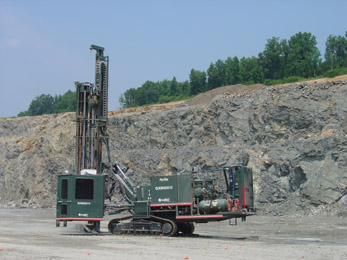

Cubex is also setting new standards in surface drilling with the QXR Gen V. With boom mounted flexibility and the Cat 320 track drive system the QXR provides the Mine/Contractor with the most productive DTH drilling system available in a boom mounted drilling market. All QXR drills are designed to operate at higher operating pressure, up to 500 psi (34.5 bar), providing increased productivity and up to 35% more drilling performance than conventional 350 psi drills.

Cubex factory field technicians and local service distributor teams provide unmatched support in the control and reduction of operating costs making equipment and operations safer, more productive and profitable.

For more information, please contact:

Web: www.cubex.net

BOOTH 1632

Icefield Tools Corporation has manufactured state-of-the-art borehole survey equipment since 1991. Products are available for rental or purchase. The slim-line Gyro Shot® gyroscopically oriented tool can be used inside drill rods and in highly magnetic ground. Icefield also offers the lower-cost MI3 magnetically oriented survey tool that is typically used through the bit. The MI3 can be used in most geological settings, including slightly magnetic ground. Both instruments will run inside AQ rods and use field-replaceable alkaline batteries. Icefield can provide running gear for applications ranging from traditional wireline coring to large-bore geotechnical drilling (up to 48 inches in diameter). As well, Icefield provides solutions for real-time data telemetry (e.g., for steering applications). The Highside Seeker® provides dip and toolface data for a variety of applications, including core orientation and directional drilling.

For more information, please contact:

Erik Blake
P.Geo., Ph.D.
Icefield Tools Corporation
PO Box 30085
#300 - 116 Galena Rd.
Whitehorse, YT Y1A 5M2

Telephone: (867) 633-4264
Toll-Free: 1-877-423-3435
Fax: (867) 633-4217

Web: www.icefieldtools.com

BOOTH 1332

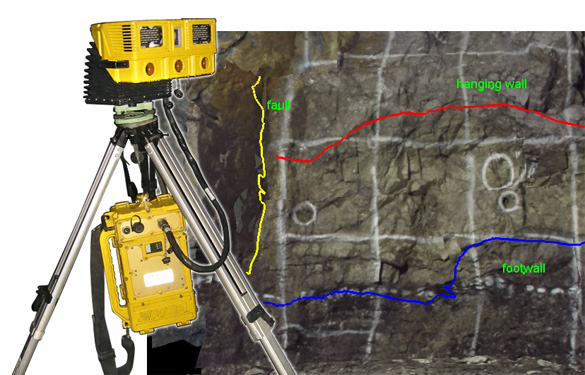

Instant Mine Modeler (iMM) creates photo-realistic 3D models from sequences of images acquired from stereo cameras for underground mines. The system can back-sight to survey stations to localize itself and the 3D models in the mine coordinates. The image acquisition and processing are done automatically and results are available within minutes. Geological information can be annotated to the 3D models and all information can be uploaded to the network and imported into mine management system.

iMM can add significant values .to mine processes:

• Grade control tool
• Geology mapping tool
• Daily production volume
• Dilution reduction
• Daily as-built update
• Mine progress monitoring

For more information, please contact:

Roy Jakola
Director Terrestrial Applications
MDA, Brampton, Ontario, Canada

Telephone: (905) 790-4454
Email: roy.jakola@mdacorporation.com

Web: www.mdacorporation.com

BOOTH 4242

When your job is to keep conveyor belts running, protect them from rips and tears at their most vulnerable points: loading and transfer zones. Richwood's Combi-Pact® Impact Saddles are engineered to protect your belts from the daily pounding of material fall at load zones. The Combi-Pact® Saddle provides full belt width protection and protects the belt from damage caused by foreign material ripping the belt. Combi Pact® Saddle's straightforward installation in the place of conventional idlers and ease of maintenance in service makes it the outstanding choice for limiting damage at loading areas. Consultation and specific engineering for your application is provided. Stop by 4242 to learn more.

Only Richwood delivers quality products built tough enough for your mining operation. From impact protection, belt cleaning, material containment and heavy duty wear linings, you can always, rely on Richwood.

For more information:

Visit our website: www.richwood.com
Toll Free: 800.237.6951
Email: info@richwood.com

BOOTH 1743

Walker Magnetics was founded in 1896. Over the next 110 years, the company would grow to become a world leader in providing custom design and manufacture of magnetic products for applications such as separation, material handling and workholding. Walker Magnetics manufactures magnetic separation equipment used in the mining industry, such as Magnetic Head Pulleys for mineral beneficiation and iron ore cobbing operations, Suspended Separation Magnets to remove damaging tramp iron to protect crushers and conveyor belts from downtime, because of damage. The company also manufactures magnetic drums used in beneficiating iron ore concentrates. Walker Magnetics also offers a full line of lifting magnets for ball and rod mill charging operations.

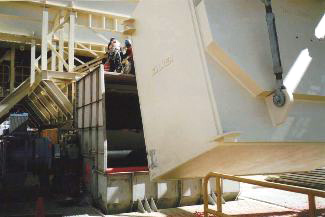

Included among the suspended magnets that Walker has built is the "World Record, 88 ½ ton Suspended Magnet" that is installed in a South American copper mine operation to protect their conveyor belts.

Walker Magnetics is also a highly regarded supplier for magnetic separation recovery products used in the recycling area.

For more information, please contact:

Sales
Walker Magnetics
Worcester, MA
Tel: 414-321-9739 (USA)
Toll Free: 1-800-962-4638
Email: sales@walkermagnet.com

Tel: 905-643-3338 (CANADA)
Toll Free: 1-800-267-4678
Email: walkermagnet@look.ca

Web: www.walkermagnet.com

BOOTH 8163

Tyco Flow Control (TFC) will showcase its products at the International MINExpo, Sept. 22 - 24 in Las Vegas, Nevada, at the Las Vegas Convention Center.

Visit our booth (8163) and see signature world-class brands including: Clarkson slurry products for on/off and modulating applications, Keystone rotary products for on/off and modulating, Vanessa triple offset products for on/off, KTM ball valves for on/off and modulating, Morin and Biffi actuation, Westlock controls, NeoTecha polymer-lined products for on/off, L&M abrasion resistant knife gates for on/off, innovative hydraulic controls systems and many other products for the mining industry.

Tyco Flow Control is a leading global provider of mining solutions capable of handling your maintenance remanufacture, offering you total product service and support. Come by booth 8163 and meet our skilled team of mining professionals and let us show you how we can help reduce downtime and add value to your operation.

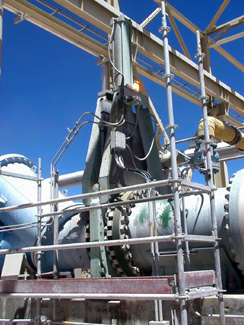

This Clarkson KGF-HP 36" slurry valve is installed in a copper mining process called tailing slurry. The delta pressure of the application is 450 PSI and the tailings solids content is 67 percent. This valve was chosen over a pipeline ball valve due to the product's ability to cut through heavy slurry, provide positive isolation, is lighter, offers a long life span before repair and is less expensive to repair.

This valve has been in service over seven years and has only recently had the seats (sleeves) replaced for preventive maintenance. This product has proven to be a high value proposition to mining customers who have converted from using traditional pipeline ball valves to Clarkson high pressure slurry technology.

For more information, please contact:

Johnny Ellis
Mining Industry Manager
Global Marketing Group
Tyco Flow Control
2790 Shadow Dancer Trl
Reno, Nevada 89511 USA

Tel: 775-851-1893
Fax: 775-851-1893
Cell: 775-848-6974
Email: jellis@tycovalves.com
Web: www.tycoflowcontrol.com

BOOTH 7664

Significantly Extend Mining Equipment Life through Real-time Monitoring

Challenges
It’s no secret that operating and maintenance costs of heavy mining equipment not only represent a large proportion of a mine’s operational expenditures but that they also threaten the profitability of the mine. Mining companies must have the ability to monitor the performance of their mobile equipment and operators, and accurately diagnose any performance issues before they lead to unnecessary downtime.

Solution
By remotely accessing onboard equipment data, personnel now have the ability to view and analyze equipment and operator performance through comprehensive dashboards, user defined KPIs and alarms.

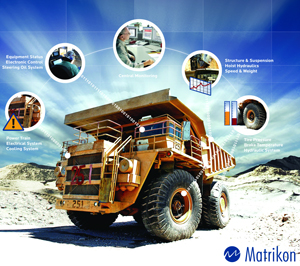

Matrikon™ Mobile Equipment Monitor is designed to reduce costs through the real-time management of equipment health, operator performance and maintenance processes. Whether your equipment is built by Caterpillar, Komatsu, or P&H, your personnel can now monitor and manage all field equipment regardless of vendor and determine the health of these critical assets.

Once abnormal conditions are detected, users are alerted and can take appropriate action to prevent abnormalities from escalating into serious health hazards and unplanned detractors from production and revenue streams. Maintenance can also monitor the entire mining fleet, receive early warning of developing problems and significantly extend equipment life through condition-based maintenance.

Summary
Mining companies are responding to the Operational Excellence challenge through innovation, technology and the continuous improvement of operational processes. Mobile equipment monitoring allows mining operations to extract more value from their assets and processes.

www.matrikon.com
Contact: David Fisk, Director of Mining - david.fisk@matrikon.com

BOOTH 8865 (NL Technologies)
